*Photos shown are examples of Industrial Control Panels; some optional equipment may be shown.

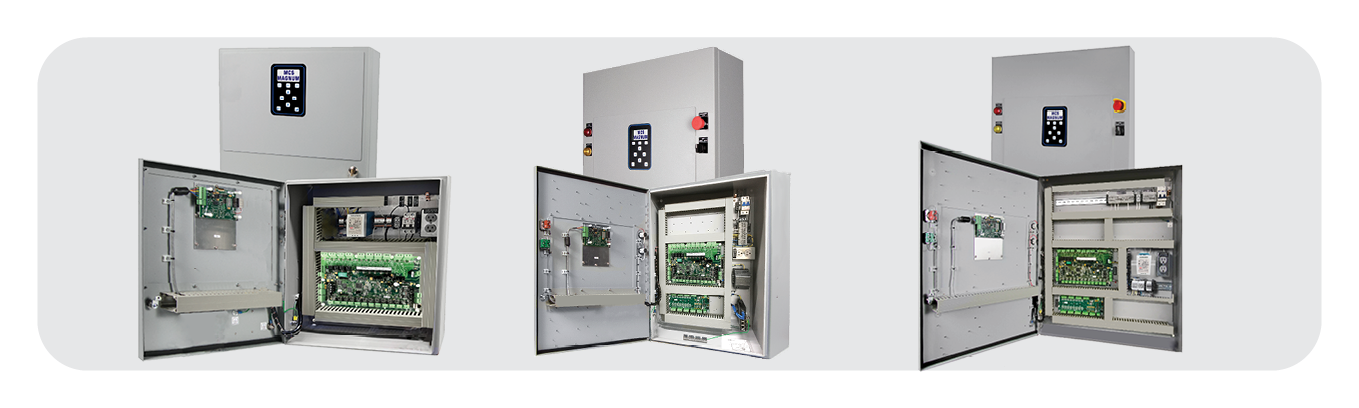

Industrial Control Panels with Keypad
Master micro controller board with twelve 0-5vdc sensor inputs, four 5vdc digital inputs, ten 230vac 6.3amp relay outputs, four 0-10vdc analog outputs, keypad and 128 x 64 dot pixel STN monochrome graphics LCD with 2.8" diagonal viewing area, real time clock, MCS-I/O, RS-485 and Ethernet communication ports. Recommended domestic input voltage to the enclosure is 120VAC and recommended international input voltage to the enclosure is 230VAC.
| UL Recognized? | ROHS Compliant? | # of Sensors | # of Relays | # of Analog Outputs |
|---|---|---|---|---|
| Micro-Control Boards | Yes | 16+ | 10+ | 4+ |
MCS-MAGNUM-SB-12
| Part Number |
MCS-MAGNUM-SB-12 |
|---|---|
| Description |
Magnum-N-12 in Industrial Control Panel 18.25" w x 19.5" h x 8" d |
| Spec Sheets |
MCS-MAGNUM-SB-12 Spec Sheet |
| Dimensional Drawings |
MCS-MAGNUM-SB Industrial Control Panels 3D
|
| Documents |
MCS-MAGNUM
Version 17 Manual MCS-MAGNUM Keypad Display Manual MCS-MAGNUM Keypad and Display Presentation |
MCS-MAGNUM-MLB-12
| Part Number |
MCS-MAGNUM-MLB-12 |
|---|---|
| Description |
Magnum-N-12 in Industrial Control Panel 22" w x 28.5" h x 8" d |
| Spec Sheets |
MCS-MAGNUM-MLB-12 Spec Sheet |
| Dimensional Drawings |
MCS-MAGNUM-MLB Industrial Control Panels 3D
|
| Documents |
MCS-MAGNUM
Version 17 Manual MCS-MAGNUM Keypad Display Manual MCS-MAGNUM Keypad and Display Presentation |
MCS-MAGNUM-LB-12
| Part Number |
MCS-MAGNUM-LB-12 |
|---|---|
| Description |
Magnum-N-12 in Industrial Control Panel 27" w x 39.75" h x 8.0" d |
| Spec Sheets |
MCS-MAGNUM-LB-12 Spec Sheet |
| Dimensional Drawings |
MCS-MAGNUM-LB Industrial Control Panels 3D
|
| Documents |
MCS-MAGNUM
Version 17 Manual MCS-MAGNUM Keypad Display Manual MCS-MAGNUM Keypad and Display Presentation |
MCS-MAGNUM-NEMA-12-8
| Part Number |
MCS-MAGNUM-NEMA-12-8 |
|---|---|
| Description |
MCS-Magnum-NEMA-12-8 is a custom built panel made of power coated aluminum. NEMA-type 4 - IP66 rating.
Dimensions: 24" w x 30" h x 8" d with mounted keypad inside. MCS-MAGNUM-NEMA-12-8 standard panel
includes a MCS-MAGNUM-N, MCS-SI-BASE along with 9 Button 2.8” Monochrome LCD Display, 20 amp circuit
breaker. |
| Spec Sheets |
MCS-MAGNUM-NEMA-12-8 |
MCS-CENTRIFUGAL-KEYPAD-12
| Part Number |
MCS-CENTRIFUGAL-KEYPAD-12 |
|---|---|
| Description |
The MCS-CENTRIFUGAL-KEYPAD-12 comes standard equipped with a MCS-MAGNUM-N-12 controller
board, LCDKeypad, two MCS-SI-BASE and one MCS-SI-EXT Expansion boards, one MCS-RO-BASEand
one MCS-RO-EXT expansion board mounted . There is also a GFCI electrical outlet for laptop plug-in
power at the box. |
| Spec Sheets |
MCS-CENTRIFUGAL-KEYPAD-12 Spec Sheet |
MCS-REMOTE-KEYPAD-NEMA4-W
| Part Number |
MCS-REMOTE-KEYPAD-NEMA4-W |
|---|---|
| Description |
Keypad in an 12x12 type 6 enclosure. |
| Spec Sheets |
MCS-REMOTE-KEYPAD-NEMA4-W Spec Sheet |
MCS-MAGNUM-8-DOOR
| Part Number |
MCS-MAGNUM-8-DOOR |
|---|---|
| Description |
The MCS-MAGNUM-8 DOOR is a unit for converting an MCS-8 Micro Controller system to the
MCS-MAGNUM Micro Controller. |
| Spec Sheets |
MCS-MAGNUM-8 DOOR-12 Spec Sheet |
| Dimensional Drawings |
MCS8-D-CONVERT-MAG Cutout Area Dimension Drawing |
*Photos shown are examples of Industrial Control Panels; some optional equipment may be shown.

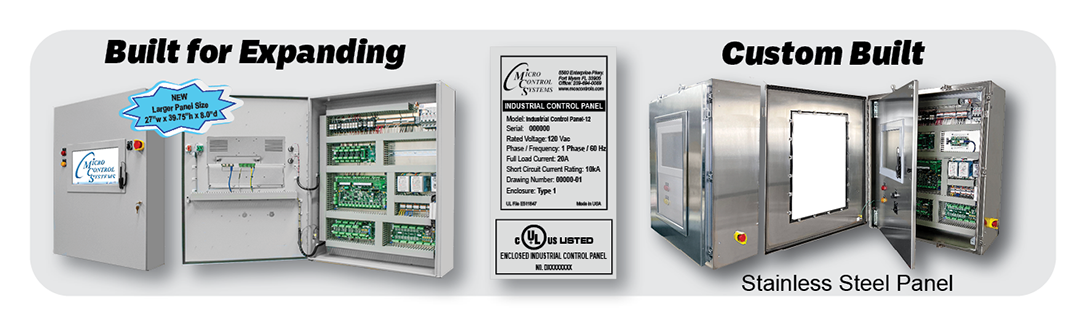

Industrial Control Panels with Touchscreens
Master micro controller board with twelve 0-5vdc sensor inputs, four 5vdc digital inputs, ten 230vac 6.3amp relay outputs, four 0-10vdc analog outputs, 10.1", or 15.4" wide TFT screen, 262K to 16.2 million colors, 1280 × 800 pixel VGA screen resolution, keypad and 128 x 64 dot pixel STN monochrome graphics LCD with 2.8" diagonal viewing area, real time clock, MCS-I/O, RS-485 and Ethernet communication ports. Recommended domestic input voltage to the enclosure is 120VAC and recommended international input voltage to the enclosure is 230VAC.
| UL Recognized? | ROHS Compliant? | # of Sensors | # of Relays | # of Analog Outputs |
|---|---|---|---|---|
| Micro-Control Boards | Yes | 16+ | 10+ | 4+ |
MCS-MAGNUM-LB-10.1-12
| Part Number |
MCS-MAGNUM-LB-10.1-12 |
|---|---|
| Description |
MCS-MAGNUM-N-12 with 10.1" Touchscreen in a Industrial Control Panel 27" w x 39.75" h x
8.0" d |
| Spec Sheets |
MCS-MAGNUM-LB-10.1-12 Spec Sheet |
| Dimensional Drawings |
MCS-MAGNUM-LB-10.1 Industrial Control Panels 3D
|
| Documents |
MCS-TOUCH
Manual MCS-TOUCHSCREEN Presentation MCS-MAGNUM Version 17 Manual |
MCS-MAGNUM-LB-15.4-12
| Part Number |
MCS-MAGNUM-LB-15.4-12 |
|---|---|
| Description |
MCS-MAGNUM-N-12 with 15.4" Touchscreen in a Industrial Control Panel 27" w x 34.75" h x
8.0" d |
| Spec Sheets |
MCS-MAGNUM-LB-15.4-12 Spec Sheet |
| Dimensional Drawings |
MCS-MAGNUM-LB-15.4 Industrial Control Panels 3D
|
| Documents |
MCS-TOUCH
Manual MCS-TOUCHSCREEN Presentation MCS-MAGNUM Version 17 Manual |
MCS-MAGNUM-MLB-10.1-12
| Part Number |
MCS-MAGNUM-MLB-10.1-12 |
|---|---|
| Description |
MAGNUM-N-12 with 10.1" Touchscreen in a Industrial Control Panel 23.5" w x
31.15" h x 8" d |
| Spec Sheets |
MCS-MAGNUM-MLB-10.1-12 Spec Sheet |
| Documents |
Magnum
Version 17 Manual MCS-TOUCH Manual MCS-TOUCHSCREEN Presentation |
MCS-MAGNUM-MLB-15.4-12
| Part Number |
MCS-MAGNUM-MLB-15.4-12 |
|---|---|
| Description |
MAGNUM-N-12 with 15.4" Touchscreen in a Industrial Control Panel 23.5" w x
31.5" h x 8" d |
| Spec Sheets |
MCS-MAGNUM-MLB-15.4-12 Spec Sheet |
| Dimensional Drawings |
MCS-MAGNUM-MLB-15.4 Industrial Control Panels 3D
|
| Documents |
Magnum
Version 17 Manual MCS-TOUCH Manual MCS-TOUCHSCREEN Presentation |

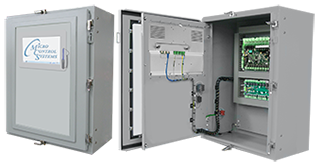

MCS-MAGNUM-NEMA4-15.4-12
| Part Number |
MCS-MAGNUM-NEMA4-15.4-12 |
|---|---|
| Description |
MAGNUM-N-12 with 15.4" Touchscreen in a Industrial Control Panel 24" w x 30"
h x 12" d |
| Spec Sheets |
MCS-MAGNUM-NEMA4-15.4-12 Spec Sheet |
| Documents |
Magnum
Version 17 Manual MCS-TOUCH Manual MCS-TOUCHSCREEN Presentation |

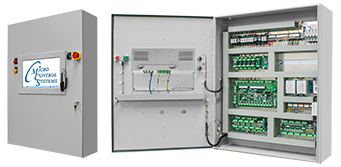

MCS-CENTRIFUGAL-12
| Part Number |
MCS-CENTRIFUGAL-12 |
|---|---|
| Description |
The MCS-CENTRIFUGAL-12 comes standard equipped with a MCS-MAGNUM-N-12 controller board,
MCS-Touch 15.4, two MCS-SI-BASE and one MCS-SI-EXT Expansion boards, one MCS-RO-BASE and
one MCS-RO-EXT expansion board mounted . There is also a GFCI electrical outlet for
laptop plug-in
power at the box. |
| Spec Sheets |
MCS-CENTRIFUGAL-12 w/Touchscreen Spec Sheet |
| Documents |
Centrifugal Upgrade
Brochure |
MCS-CENTRIFUGAL-NEMA4-12
| Part Number |
MCS-CENTRIFUGAL-NEMA4-12 |
|---|---|
| Description |
The MCS-CENTRIFUGAL-NEMA4-12- Industrial Control Panel is made of powder coated
aluminum
for durability and longevity. A left hand swing door is mounted with three eight-inch
hinges for
strength. A 36”H x 30”W x 12”D NEMA 4 stainless steel window kit is mounted which
provides a
degree of protection against falling rain, splashing water and hose directed water. The
control panel
consists of a MCS-MAGNUM-N-12, MCS-TOUCH 15.4” touchscreen, MCS-SI-BASE(2) with
MCS-SI-EXT(1), MCS-RO-BASE(1) with MCS-RO-EXT(1) expansion boards. |
| Spec Sheets |
MCS-CENTRIFUGAL-NEMA4-12 w/Touchscreen Spec Sheet |
MCS-CENTRIFUGAL-NEMA4-12-SS
| Part Number |
MCS-CENTRIFUGAL-NEMA4-12-SS |
|---|---|
| Description |
The MCS-CENTRIFUGAL-NEMA4-12-SS Industrial Control Panel is made of Stainless Steel
type 316
for durability and longevity. A left hand swing door is mounted with three eight-inch
hinges for
strength. A 36”H x 30”W x 12”D NEMA 4 stainless steel window kit is mounted which
provides a
degree of protection against falling rain, splashing water and hose directed water. The
control panel
consists of a MCS-MAGNUM-N-12, MCS-TOUCH 15.4” touchscreen, MCS-SI-BASE(2) with
MCS-SI-EXT(1), MCS-RO-BASE(1) with MCS-RO-EXT(1) expansion boards. |
| Spec Sheets |
MCS-CENTRIFUGAL-NEMA4-12-SS w/Touchscreen Spec Sheet |
MCS-REMOTE-10.1
| Part Number |
MCS-REMOTE-10.1 |
|---|---|
| Description |
10.1 Touchscreen in an 18.25" x 19.5" x 8"d enclosure. |
| Spec Sheets |
MCS-REMOTE-10.1 Spec Sheet |
MCS-REMOTE-15.4
| Part Number |
MCS-REMOTE-15.4 |
|---|---|
| Description |
15.4 Touchscreen in an 18.25" x 19.5" enclosure. |
| Spec Sheets |
MCS-REMOTE-15.4 Spec Sheet |
Options available for all MCS-MAGNUM Industrial Control Panels listed above
Part Number |
Description |
|---|---|
| -MB-ALARM | alarm indicator “ALARM” |
| -MB-BMS-GATEWAY | BacNet IP to MSTP/Lontalk/N2, mounted in enclosure |
| -MB-BYPASS | Momentary bypass push button "BYPASS" |
| -MB-CARRIER-5K-ADAPTER | Resistor adapter that converts the Carrier motor winding temperature |
| -MB-COMP#(xx) | (Specify “xx” as 1,2,3,4,5,6,7,8) ON/OFF Compressor Run 2 position selector switch “OFF-CMP#-ON” |
| -MB-EMERG-SW | Emergency Stop switch "EMERGENCY STOP" |
| -MB-ETHERNET-SWITCH | Industrial rated 10/100 Ethernet Workgroup Switch mounted in enclosure |
| -MB-EXV-DRIVER-(xx) | (Specify “xx” as 24V, 115V or 230V) Control Board for EXVs mounted in enclosure |
| -MB-MODBUS-I/O-12 | Modbus Master Board mounted in enclosure |
| -MB-PT1000-ADAPTER | Resistor adapter that converts the Hanbell motor winding temperature |
| -MB-RO-BASE | Relay output expansion board |
| -MB-RO-EXT | Relay output expansion board-mounted on MCS-RO-BASE expanding number of relays available |
| -MB-RUN-LT# | Green run indicator “RUN #” |
| -MB-RUN-SW | RUN/STOP 3 position selector switch "HAND-OFF-AUTO" |
| -MB-SI-BASE | Sensor input and analog output expansion board |
| -MB-SI-EXT | Sensor input and analog output expansion board-mounted on MCS-SI-BASE expanding number of sensors and analogs available |
| -MB-WARNING | Yellow warning indicator “WARNING” |
|
Please Note: All options are factory installed at MCS. When ordering, please list these as separate part numbers. |
|
