Demonstration Unit
Demonstration Unit

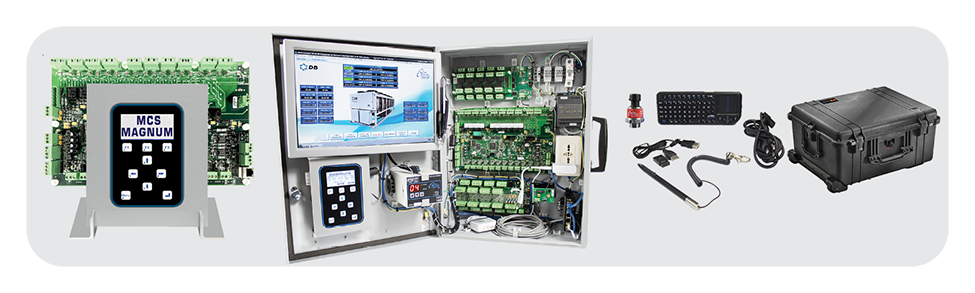

The MCS-MAGNUM master micro controller board with twelve 0-5vdc sensor inputs, four 5vdc digital inputs, ten 230vac 6.3amp relay outputs, four 0-10vdc analog outputs, keypad, 128 x 64 dot pixel STN monochrome graphics LCD with 2.8" diagonal viewing area, real time clock, MCS-I/O, RS-232, RS-485 and Ethernet communication ports. Mounted to a backplane and attached to a stand along with a keypad and display. User selectable 115 or 230vac operation.
| Voltage | UL Recognized? | ROHS Compliant? | # of Sensors | # of Relays | # of Analog Outputs |
|---|---|---|---|---|---|
| 12VDC | Yes | Yes | 16 | 10 | 4 |
| Part Number |
MAGNUM-DEMO-12 |
|---|---|
| Description |
MAGNUM-DEMO-12 consists of a MAGNUM micro-controller mounted to a backplane and
attached to a
stand-along with a keypad and display. |
| Spec Sheets |
MAGNUM-DEMO-12 |
| Part Number |
MAGNUM-TOUCH-15.4-DEMO-12 |
|---|---|
| Description |

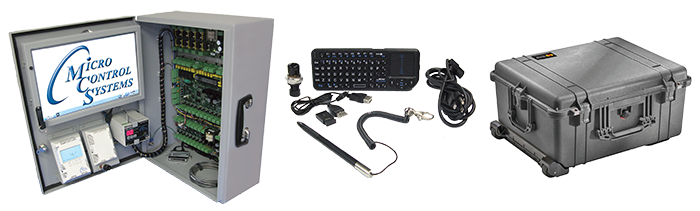

The MAGNUM-TOUCH-15.4-DEMO-12 consists of a MAGNUM micro controller, MCS-RO-BASE,
MCS-RO-EXT, MCS-SI-BASE, MCS-SI-EXT expansion boards and a MCS-TOUCH-15.4. Also
installed in the Demo unit is a MCS-EXV DRIVER, MCS-500 Transducer with cable,
MCS-THERMOSTAT, MCS-ZONE, MCS-CT300, a MCS-POCKET ROUTER and a MCS-T100. |
| Spec Sheets |
MAGNUM-TOUCH-15.4-DEMO-12 |
| Part Number |
MAGNUM-TOUCH-15.4-KP-DEMO-12 |
|---|---|
| Description |
The MAGNUM-TOUCH-15.4-KP-DEMO-12 consists of a MAGNUM micro controller, MCS-RO-BASE,
MCS-RO-EXT, MCS-SI-BASE, MCS-SI-EXT expansion boards and a MCS-TOUCH-15.4. Also
installed in the Demo unit is a MCS-EXV DRIVER, MCS-500 Transducer with cable, MCS-ZONE,
MCS-CT300, a MCS-POCKET ROUTER and a MCS-T100. |
| Spec Sheets |
MAGNUM-TOUCH-15.4-KP-DEMO-12 |
