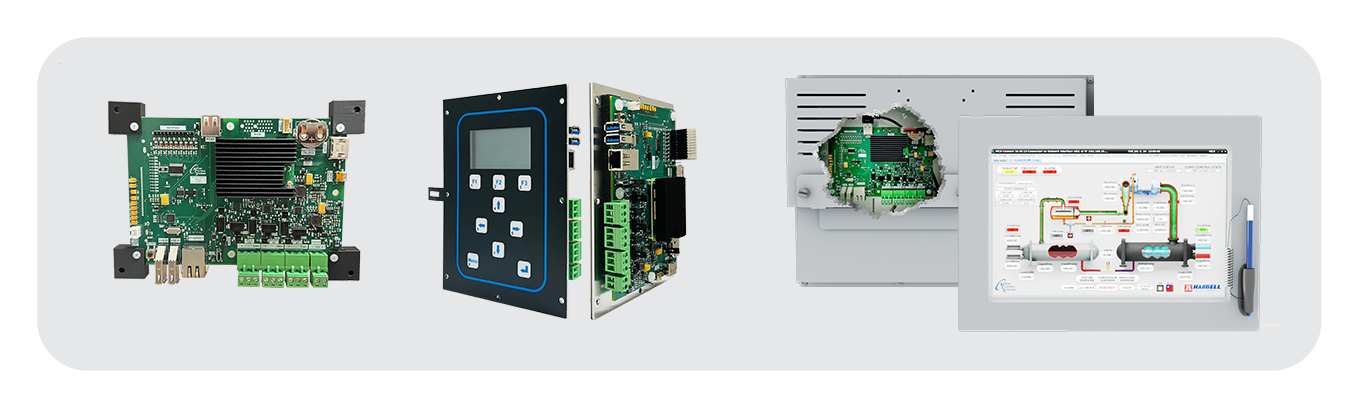

NitroMag Controllers

The MCS-NitroMag-N is a control system containing a processor, memory, eMMC Flash, and supporting power circuitry. The Broadcom quad-core processor delivers a blazing speed of 1.5GHz.
The MCS-NitroMag-N controller connects with MCS Expansion boards and Extension boards, allowing for a maximum of 144 SI inputs, 90 RO outputs, and 36 AO outputs.

The MCS-NitroMag-OEM is a control system containing a Keypad, a processor, memory, eMMC Flash, and supporting power circuitry. The Broadcom quad-core processor delivers a blazing speed of 1.5GB.
The MCS-NitroMag-OEM features an easy-to-use keypad with three function keys, four directions keys and two selection keys (Menu & Enter).
The display LCD is 128 x 64 dot pixel graphics, 2.8” diagonal viewing area with White characters on a dark background (reversible). Includes a NEMA Type 1 faceplate for easy mounting to an enclosure door.
The MCS-NitroMag-OEM controller allows for 144 SI inputs, 90 RO outputs, and 36 AO outputs.
(Expansion Boards required).

The MCS-NitroMag-PANEL is a control system containing a Keypad, a processor, memory, eMMC Flash, and supporting power circuitry. The Broadcom quad-core processor delivers a blazing speed of 1.5GB.
The MCS-NitroMag-PANEL features an easy-to-use keypad with three function keys, four directions keys and two selection keys (Menu & Enter).
The display LCD is 128 x 64 dot pixel graphics, 2.8” diagonal viewing area with White characters on a dark background (reversible). Includes a NEMA type 1 bracket for easy installed on backplane inside an enclosure.
The MCS-NitroMag-PANEL controller allows for 144 SI inputs, 90 RO outputs, and 36 AO outputs.
(Expansion Boards required).

The MCS-NitroMag-DOOR is a control system containing a Keypad, a processor, memory, eMMC Flash, and supporting power circuitry. The Broadcom quad-core processor delivers a blazing speed of 1.5GB.
The MCS-NitroMag-DOOR features an easy-to-use keypad with three function keys, four directions keys and two selection keys (Menu & Enter).
The display LCD is 128 x 64 dot pixel graphics, 2.8” diagonal viewing area with White characters on a dark background (reversible). Includes a NEMA Type 1 faceplate for easy mounting to an enclosure door.
The MCS-NitroMag-DOOR controller allows for 144 SI inputs, 90 RO outputs, and 36 AO outputs.
(Expansion Boards required).

The MCS-NitroMag-DOOR-NEMA4 has been sealed in its own frame using a new Gasket (HT-800 Medium Cellular Silicone). It features an easy-to-use keypad with three function keys, four directions keys and two selection keys (Menu & Enter).
The display LCD is 128 x 64 dot pixel graphics, 2.8” diagonal viewing area with White characters on a dark background (reversible).
The MCS-NitroMag-DOOR-NEMA4 is a control system containing a processor, memory, eMMC Flash, and supporting power circuitry. The Broadcom quad-core processor delivers a blazing speed of 1.5GHz.
The MCS-NitroMag-DOOR-NEMA4 controller allows for 144 SI inputs, 90 RO outputs, and 36 AO outputs.
(Expansion Boards required).

The MCS-NitroMag-15.4 is a control system containing a Capacitive Touchscreen, and a MCS-NitroMag-N controller. It includes a processor, memory, eMMC Flash, and supporting power circuitry. The Broadcom quad-core processor on the MCS-NitroMag-N delivers a blazing speed of 1.5GHz.
The MCS-NitroMag-15.4 controller connects with MCS Expansion boards and Extension boards, allowing for a maximum of 144 SI inputs, 90 RO outputs, and 36 AO outputs.
The Capacitive touchscreen interface designed to simplify user access with the MCS Expansion Boards and utilizing MCSConnect to provide both graphics and service mode access to technicians. Highly accurate and does not require calibration - easy to clean glass surface. Works outdoors, bright screen, water resistant, Exceptional Optics - 1280x800 resolution, sharp and vibrant images.
MCS-NitroMag-15.4 comes pre loaded with the MCS-CONNECT program that allows you to view the 'unit's status','extended history', 'alerts', 'alarms', setpoints, and more, all in a userfriendly graphic format.
