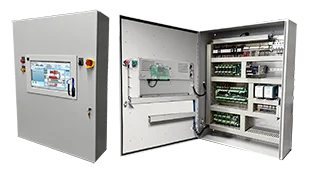

MCS-NITROMAG-CENTRIFUGAL
Click for Documentation
MCS-NITROMAG-LB-15.4
Click for Documentation
MCS-NITROMAG-MLB-15.4
Click for Documentation

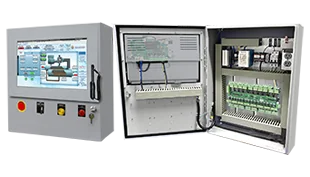

MCS-NITROMAG-SB-15.4
The MCS-NitroMag inside a NEMA-rated enclosure — a next-generation microprocessor-based controller for high-performance HVAC/R applications, available in multiple built-in enclosure sizes.
1.5 GHz quad-core Broadcom processor with 16 GB eMMC storage and 2 GB DDR3 RAM — fast operation on complex control tasks.
Up to 144 sensor inputs, 90 relay outputs, and 36 analog outputs via MCS expansion and extension boards.
Built-in WiFi, dual HDMI, Gigabit Ethernet, USB, and dual RS-485 ports for local and remote access.
Modbus RTU/IP and BACnet IP/MSTP support — also acts as a Modbus master for up to 20 devices. (BTL Certificate)
| Part Number | Description | ||
|---|---|---|---|
| MB-ALARM | alarm indicator “ALARM” | ||
| MB-BMS-GATEWAY | Lontalk/N2, mounted in enclosure | ||
| MB-BYPASS | Momentary bypass push button "BYPASS" | ||
| MB-CARRIER -5K-ADAPTER |
Resistor adapter that converts the Carrier motor winding temperature | ||
| MB-COMP#(xx) | (Specify “xx” as 1,2,3,4,5,6,7,8) ON/OFF Compressor Run 2 position selector switch “OFF-CMP#-ON” | ||
| MB-EMERG-SW | Emergency Stop switch "EMERGENCY STOP" | ||
| MB-ETHERNET-SWITCH | Industrial rated 10/100 Ethernet Workgroup Switch mounted in enclosure | ||
| MB-EXV-DRIVER-(xx) | (Specify “xx” as 24V, 115V or 230V) Control Board for EXVs mounted in enclosure | ||
| MB-MODBUS-I/O-12 | Modbus Master Board mounted in enclosure | ||
| MB-PT1000-ADAPTER | Resistor adapter that converts the Hanbell motor winding temperature | ||
| MB-RO-BASE | Relay output expansion board | ||
| MB-RO-EXT | Relay output expansion board-mounted on MCS-RO-BASE expanding number of relays available | ||
| MB-RUN-LT# | Green run indicator “RUN #” | ||
| MB-RUN-SW | RUN/STOP 3 position selector switch "HAND-OFF-AUTO" | ||
| MB-SI-BASE | Sensor input and analog output expansion board | ||
| MB-SI-EXT | Sensor input and analog output expansion board-mounted on MCS-SI-BASE expanding number of sensors and analogs available | ||
| MB-WARNING | Yellow warning indicator “WARNING” |
