MicroMag Controllers

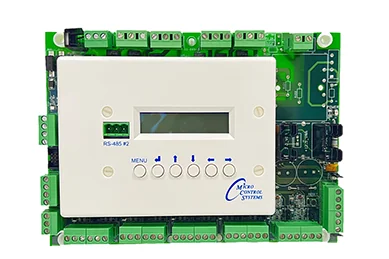

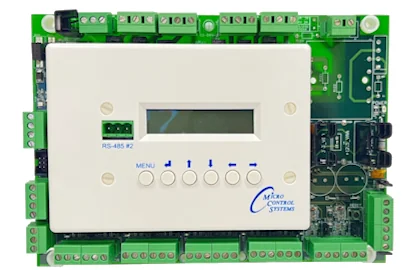

MCS-MicroMag Micro Controller Board for Compressor Control
Designed to manage up to six independent compressor circuits ideal for HVAC and industrial control systems.
Key Capabilities
Compressor Control
Manages up to 6 independent compressor circuits with a dedicated TRIAC output for digital scroll compressors.
On-Board I/O
10 × 0 5 VDC sensor inputs and 4 × 0 10 VDC analog outputs, plus MCS-I/O integration for expansion.
Communication & Timing
Dual RS-485 communication ports and a built-in real-time clock for reliable scheduling and BMS connectivity.
Display & Installation

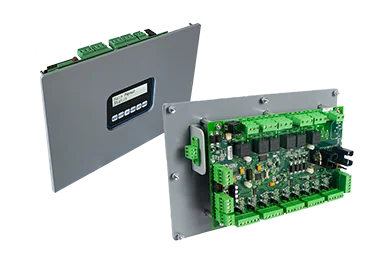

2-line, 16-character backlit display with 6-button keypad; reversible cover design supports door mounting (kit available from MCS Sales).
