Sensors
A complete line of industrial-grade sensors — engineered, calibrated, and tested in-house at Micro Control Systems for HVAC, refrigeration, chiller, and process-control applications.
Precision-calibratedTested in-houseMade in the USATemperature and Humidity Sensors
MCS-T100
documentation
The MCS-T100 is an extremely fast acting temperature sensor built for demanding environments. It is ideal for high moisture locations with continuous freeze and thaw cycles. The sensor is potted with a thermally conductive RTV Cure Silicon Adhesive to guarantee durability and response. Its high accuracy allows for interchangeability in the field. The large resistance range allows the use of over 1000' of cable with no noticeable effect. By placing a 100,000 ohm resister between signal and ground the sensor may be used in a three wire input mode.
Part Number Minimum Temperature range Maximum Temperature range Cable Length MCS-T100-20 −40°F
−40°C+248°F
+120°C20 Feet MCS-T100-40 −40°F
−40°C+248°F
+120°C40 Feet MCS-T100-60 −40°F
−40°C+248°F
+120°C60 Feet MCS-T100-L-20 −60°F
−51°C+48°F
+9°C20 Feet MCS-T100-L-40 −60°F
−51°C+48°F
+9°C40 Feet
Description
-40° to +248°F (-40° to +120°C) temperature sensor in a stainless steel deep drawn tube with 20', 40', or 60' of 2 conductor shielded cable.
3 Dimentional Drawings
MCS-T300
documentation
The MCS-T300 is an extremely fast acting temperature sensor built for demanding environments. It is ideal for high moisture locations with continuous freeze and thaw cycles. The sensor is potted with a thermally conductive RTV Cure Silicon Adhesive to guarantee durability and response. Its high accuracy allows for interchangeability in the field. The large resistance range allows the use of over 1000' of cable with no noticeable effect. By placing a 100,000 ohm resister between signal and ground the sensor may be used in a three wire input mode.
Part Number Minimum Temperature range Maximum Temperature range Cable Length Accessories MCS-T300 −22°F
−30°C+125°F
+51°C20 Feet YES See Below MCS-T300-L −76°F
−60°C+32°F
+0°C20 Feet YES See Below MCS-T300-H −32°F
−0°C+250°F
+121.1°C60 Feet YES See Below
Description
-22° to +125°F (-30° to +51.6°C) temperature sensor in nickel plated copper deep drawn tube with 20' of 3 conductor shielded cable.
3 Dimentional Drawings
MCS-T100-AVG-20
documentation

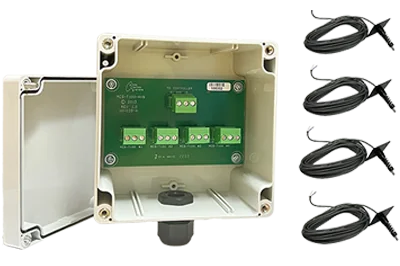

The MCS-T100-AVG-20 comprised of four MCS-T100-20s in addition to a Nema 4X mounting enclosure used to read the average temperature. The Nema 4X is a durable, weatherproof, enclosure which is suited to be mounted inside or outside.
Part Number Minimum Temperature range Maximum Temperature range Cable Length MCS-T100-AVG-20 −32°F
−0°C+158°F
+70°C20 Feet
Description
32° to +158°F (0° to +70°C) temperature range for four MCS-T100-20 sensors that all connect to our five input board that communicates with the MCS-Magnum to average the four sensors.
Spec Sheets
3 Dimensional Drawings
MCS-TUBE
documentation
The MCS-TUBE can be epoxied to a discharge or suction line in order to obtain temperature readings without the use of a well. It was designed to be used with the MCS-T100 temperature sensor and comes pre-filled with heat conductive compound to aid in transferring temperature to the sensor.
Part Number Diameter Tube Length Overall Length MCS-TUBE 0.425″ OD
0.355″ ID2.75″ 20.75″
Description
Thin walled deep drawn copper tube 2¾″ long with an 0.425″ outside diameter filled with heat transfer grease. Designed to hold a MCS-T100 temperature sensor.
Spec Sheets
MCS-TUBE+WELL Spec Sheet

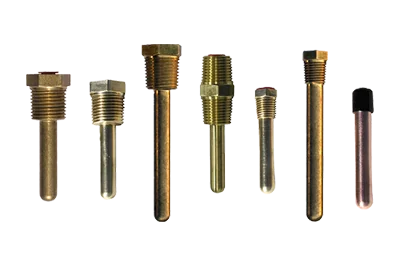

MCS-WELL
documentation
The MCS-Well was designed to be used with the MCST100 temperature sensor, although it has other applications. It comes pre-filled with heat conductive compound to aid in temperature to the sensor.
Part Number Diameter Tube Length Overall Length MCS-WELL-1/4 0.400″ OD
0.300″ ID1.8″ 4.75″ MCS-WELL-1/4-3 0.400″ OD
0.300″ ID3.00″ 6.00″ MCS-WELL-1/4-3 0.400″ OD
0.300″ ID1.75″ 4.75″ MCS-WELL-1/4-3 0.400″ OD
0.300″ ID3.00″ 6.00″ MCS-WELL-1/4-3 0.400″ OD
0.300″ ID1.81″ 3.50″ MCS-WELL-1/4-3 0.400″ OD
0.300″ ID1.75″ 4.75″
Description
A tube filled with heat transfer grease that has been soldered onto a ¼″, ½″, or ¾″ brass hex fitting with NPT thread. Total length is 2½″, 2¾″, 3½″, 3.68″, or 4″.
Spec Sheets
MCS-TUBE+WELL Spec Sheet
3 Dimensional Drawings
MCS-WELL-1/4
MCS-WELL-1/4-3
MCS-WELL-1/2
MCS-WELL-1/2-3
MCS-WELL-1/2-BD
MCS-WELL-3/4
MCS-SAIR
documentation
The MCS-SAIR consists of a MCS-T100 temperature sensor with an air supply bracket. The mounting base is 2″ x 2″ for inserting into an air duct with 20′ or 40′ of two-conductor shielded cable.
Part Number Minimum Inserting into Air Duct Cable Length MCS-SAIR-20 2.25″ 20 Feet MCS-SAIR-40 2.25″ 40 Feet MCS-SAIR-60 2.25″ 60 Feet
Description
An MCS-T100 temperature sensor with an air supply bracket. Mounting base is 2″ x 2″ and requires a minimum of 2.25″ for inserting into air duct. Comes with 20′, 40′, or 60′ of 2 conductor shielded cable.
3 Dimensional Drawings

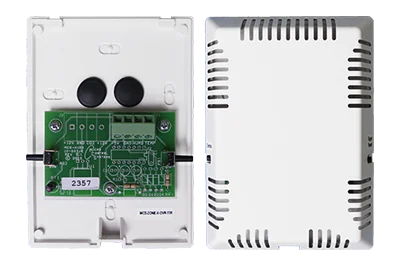

MCS-ZONE-II
documentation
An extremely reliable sensor packaged in a very durable aesthetic package. The sensor is potted with a thermally conductive RTV Cure Silicon Adhesive to guarantee durability and response, its high accuracy allows for interchangeability in the field.
Part Number Description MCS-ZONE-II Temperature sensor board packaged in a plastic housing 4.30″w x 6.50″l x 2.25″h. MCS-ZONE-II-OVR MCS-ZONE-II with an override pushbutton MCS-ZONE-II-OVR-T/R MCS-ZONE-II with override pushbutton and target reset pushbutton
3 Dimensional Drawings
MCS-HUMD-II
documentation

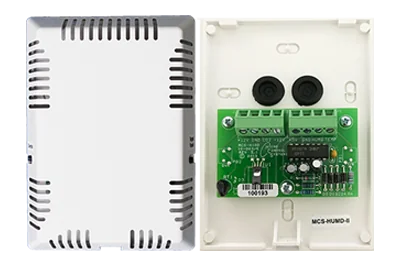

The Temperature Humidity zone mounted sensor is supplied in an attractive package which can be mounted on standard USA or Overseas electrical boxes. The package includes rubber wire grommets that eliminate any draft influence on the sensors. Both the temperature and humidity sensors are the MCS highly reliable sensors with accuracy, durability and extremely fast response time.
Part Number Description MCS-HUMD-II Combination humidity and ambient temperature sensor board packaged in a plastic housing 4.30″w x 6.50″l x 2.25″h. MCS-HUMD-II-OVR MCS-HUMD-II with override pushbutton MCS-HUMD-II-OVR-T/R MCS-HUMD-II with override pushbutton and target reset pushbutton
3 Dimensional Drawings
MCS-HUMD-OS
documentation
Outside Air Combination Sensor with Humidity Transmitter and 100K Thermistor Temperature Transmitter.
Part Number Description MCS-HUMD-OS Combination humidity and ambient temperature sensor board packaged in a plastic housing 2.89″w x 2.82″l x 7.98″h.
3 Dimensional Drawings
Thermostat
MCS-THERMOSTAT
documentation
This user friendly interface allows the viewing of 17 different parameters and has the ability to change 9 adjustable settings including cooling heating system setpoints, operational schedules, holiday schedules, calibration and password protection.
Description
The MCS-THERMOSTAT is a temperature and humidity sensing smart device with a backlit LCD display permitting remote adjustments to the MicroMag controller.
NOTICE: Requires a configuration file for MCS-CONTROLLER from MCS Factory.
3 Dimensional Drawings
Current Sensors
MCS-CT
documentation

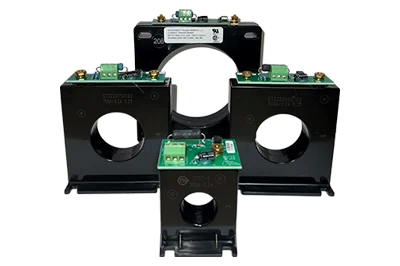

The MCS-CT current sensor monitors current flowing to electrical equipment. The magnitude of the current is converted to a linear 0 to 5vdc output signal which can be read as a standard analog input signal.
Part Number Description MCS-CT300 300:0.2 current transformer with circuitry to convert induced ac voltage into a 0-5vdc output voltage. Wire hole diameter: 1.00 ″ MCS-CT500 500:0.2 current transformer with circuitry to convert induced ac voltage into a 0-5vdc output voltage. Wire hole diameter: 2.05 ″ MCS-CT750 750:0.2 current transformer with circuitry to convert induced ac voltage into a 0-5vdc output voltage. Wire hole diameter: 2.05 ″ MCS-CT1500 1500:0.2 current transformer with circuitry to convert induced ac voltage into a 0-5vdc output voltage. Wire hole diameter: 4.25 ″
Spec Sheets
MCS-CT300 Spec Sheet
MCS-CT500 Spec Sheet
MCS-CT750 Spec Sheet
MCS-CT1500 Spec Sheet
Dimensional Drawings
MCS-CT300 3D
MCS-CT500 3D
MCS-CT750 3D
MCS-CT1500 3D

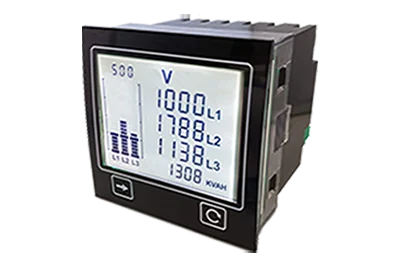

MCS-POWERMETER-B
documentation
The MCS-POWERMETER-B is expertly designed for engineers who require a highly effective means of monitoring and displaying data. This panel-mounted 3-phase power meter is specifically tailored for mains circuits, potential transformers, and current transformers. With its multi-measurement capability for active and reactive power, it stands as the ideal choice for a diverse range of power monitoring applications, solidifying its position as the most flexible panel power meter for electrical monitoring.
Spec Sheets
Pressure Transducers
MCS Pressure Transducers
documentation
Part Number Minimum PSI Maximum PSI Cable Length MCS-150AC 0 150 Sensor Only MCS-150AC-20M 0 150 20 Feet MCS-150AC-40M 0 150 40 Feet MCS-150AC-60M 0 150 60 Feet MCS-200C 0 200 Sensor Only MCS-200C-20M 0 200 20 Feet MCS-200C-40M 0 200 40 Feet MCS-200C-60M 0 200 60 Feet
Description

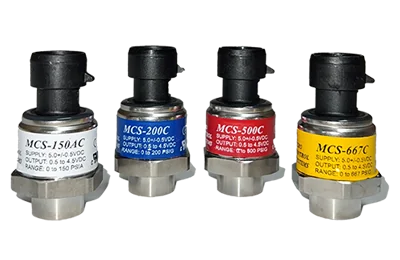

The absolute pressure transducer is specifically engineered for HVAC and refrigeration applications, even in the most demanding environments. It offers a cost-effective solution without compromising on high accuracy, long-term reliability, and extended service life.
Dimensional Drawings
MCS-150AC
MCS-200C
MCS-500C
MCS-667C

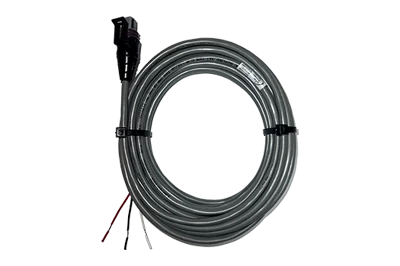

PACK-CON
Part Number Description PACK-CON-20 Packard connector with 20' 3 wire shielded cable for MCS pressure transducers. PACK-CON-40 Packard connector with 40' 3 wire shielded cable for MCS pressure transducers. PACK-CON-60 Packard connector with 60' 3 wire shielded cable for MCS pressure transducers.
3 Dimensional Drawings
MCS-STATIC
documentation
Differential (static) pressure transducer that is designed to handle dry air or non-conducting gas.
Part Number Minimum Inches WC Maximum Inches WC MCS-STATIC-0.2" 0 0.2 MCS-STATIC-5"-B 0 0.5 MCS-STATIC-50" 0 50.0
Dimensional Drawings
MCS-STATIC-0.2" 3D
MCS-STATIC-0.5" 3D
MCS-STATIC-50" 3D
MCS-050-DIFFB
documentation
Part Number Minimum Pressure Range Maximum Pressure Range MCS-050-DIFFB 0 50
Description
Differential pressure transducer that is an economic and durable option for dealing with differential-pressure industrial applications.
3 Dimensional Drawings
Voltage Sensors
MCS-VOLTAGE-1PH
documentation
Description

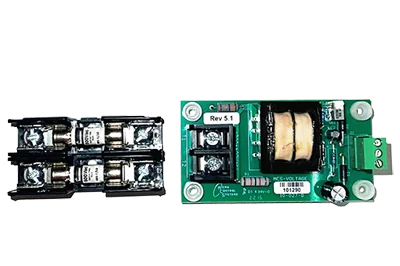

The MCS-VOLTAGE-1PH board is designed to accept single-phase AC voltage inputs ranging from 200 VAC to 600 VAC. It converts this input into a corresponding DC voltage output between 1.42 VDC and 4.91 VDC, which is sent to a sensor input on the MCS-MAGNUM microcontroller. The microcontroller is programmed to interpret this DC signal and accurately convert it back into the corresponding AC voltage value.
Dimensional Drawings
MCS-VOLTAGE-3D
MCS-FUSE-3D
MCS-VOLTAGE-3PH
documentation
Description

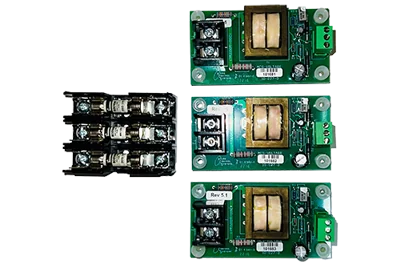

The MCS-VOLTAGE-3PH board accepts AC voltage inputs ranging from 200 VAC to 600 VAC and converts them into three separate DC voltage outputs, each ranging from 1.42 VDC to 4.91 VDC. These outputs are fed into the sensor inputs of an MCS-MAGNUM microcontroller, which is programmed to interpret the DC signals and convert them back into their corresponding AC voltage values.
Dimensional Drawings
MCS-VOLTAGE-3D
MCS-FUSE-3D
MCS-PHASE
documentation

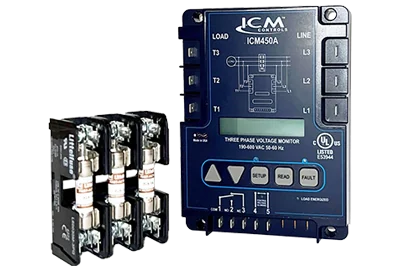

Programmable 3-phase line voltage monitor with 25-fault memory, high temperature LCD display, easy setup and clear diagnostic readout of system faults. The MCS-PHASE was specifically designed to protect motors and other 3-phase loads from premature failure and damage due to common voltage faults such as unbalance, over/under voltage, phase loss, reversal, incorrect sequencing and rapid short cycling.
Part Number Description MCS-PHASE Three phase voltage monitor / 190-630vac 50-60Hz
Dimensional Drawings
MCS-PHASE-3D
MCS-CONDUCTIVITY
documentation
Info
The MCS software accurately translates this voltage to read out the fluid conductivity in standard units of mS/cm. This value is compared with setpoint information to control bleed andfeed functions.
Description

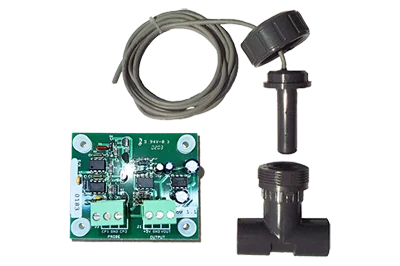

The MCS-CONDUCTIVITY is a conductivity-to-voltage transducer which takes its input from a carbon electrode probe in a fluid stream and outputs a corresponding voltage to a MCS micro controller.
CO2 Sensors
MCS-CO2-W
documentation
The MCS-CO2-W is a CO2 sensor designed to mount on a wall. The MCS-CO2-W measures the CO2 in a range of 0 to 2,000 ppm with an output of 0-5 VDC. The MCS-CO2-W utilizes a gold-plated infrared (NDIR) waveguide technology for enhanced stability, accuracy and reliability.
Part Number Description MCS-CO2-W The MCS-CO2-W measures the CO2 in a range of 0 to 2,000 ppm with an output of 0-5 VDC. MCS-CO2-W-LCD Carbon dioxide wall mount transmitter w/ LCD of CO2 level 4 Digits, 7 segments LCD with ppm indicator.
Dimensional Drawings
MCS-CO2-W-3D

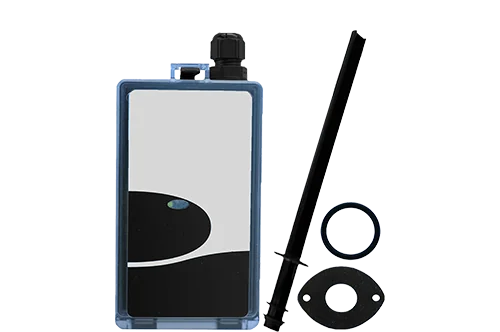

MCS-CO2-D
documentation
The MCS-CO2-D is a CO2 sensor designed to mount in a duct. The MCS-CO2-D measures the CO2 in a range of 0 to 2,000 ppm with an output of 0-5 VDC. The MCS-CO2-D utilizes a gold-plated infrared (NDIR) waveguide technology for enhanced stability, accuracy and reliability.
Description
The MCS-CO2-D measures the CO2 in a range of 0 to 2,000 ppm with an output of 0-5 VDC.
Dimensional Drawings
MCS-CO2-D-3D
MCS-CO2-OA
documentation
The MCS-CO2-OA combines excellent performance with a straightforward design to provide an analog output based on 0 to 2,000 ppm of carbon dioxide. The MCS-CO2-OA is complete with an *IP65 housing with side ventilation to support the flow of outdoor air.
Part Number Description MCS-CO2-OA The MCS-CO2-OA measures the CO2 in a range of 0 to 2,000 ppm with an output of 0-5 VDC.
