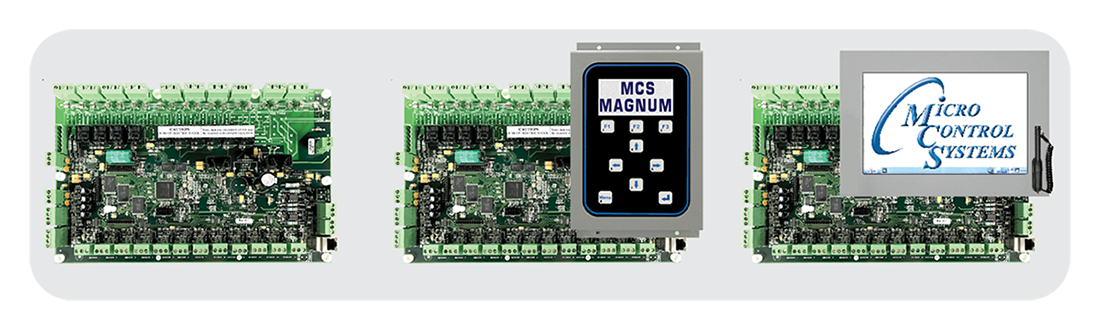

Magnum 12V Controllers

MCS-MAGNUM-OEM-12



Master micro controller board with twelve 0-5vdc sensor inputs, four 5vdc digital inputs, ten 230vac 6.3amp relay outputs, four 0-10vdc analog outputs, MCS-I/O, RS-232, RS-485, and Ethernet communication ports.

MCS-MAGNUM-OEM-12
Part Number MCS-MAGNUM-OEM-12
Description Magnum-OEM-12 with OEM mounted Keypad / LCD assembly
Spec Sheets MCS-MAGNUM-OEM-12 Spec SheetPDF
Installation Magnum Getting Started ManualPDF
Wiring Diagrams MCS-MAGNUM-N-12
MCS-MAGNUM-OEM-12 with Expansion Boards
Dimensional Drawings MCS-MAGNUM-N-12 3D (DWG)
MCS-MAGNUM-N-12 3D (STP)
Documents Magnum Version 17 ManualPDF
Magnum Keypad Display ManualPDF
MCS-Magnum-7-12

MCS-MAGNUM-7-12
Part Number MCS-MAGNUM-7-12
Description Magnum-12 with 7" 262,000 colors 1280x800 resolution touchscreen, NEMA4 rated.
Spec Sheets MCS-MAGNUM-7-12 Spec Sheet PDF
MCS-MAGNUM-BACnet-PIC PDF
Wiring Diagrams MCS-MAGNUM-N-12
MCS-MAGNUM-OEM-12 with Expansion Boards
Documents MCS-TOUCH 7 or 15.4 Product ReleasePDF
MCS-TOUCHSCREEN Presentation (PPS)
MCS-TOUCH ManualPDF
MCS-Magnum-10.1-12

MCS-MAGNUM-10.1-12
Part Number MCS-MAGNUM-10.1-12
Description Magnum-12 with 10.1" 16.2 million colors 1280x800 high resolution touchscreen, NEMA4 rated.
Spec Sheets MCS-MAGNUM-10.1-12 Spec Sheet PDF
MCS-MAGNUM-BACnet-PIC PDF
Wiring Diagrams MCS-MAGNUM-N-12
MCS-MAGNUM-OEM-12 with Expansion Boards
Documents MCS-TOUCH-10.1 Product ReleasePDF
MCS-TOUCHSCREEN Presentation (PPS)
MCS-TOUCH ManualPDF
MCS-Magnum-15.4-12

MCS-MAGNUM-15.4-12
Part Number MCS-MAGNUM-15.4-12
Description Magnum-12 with 15.4" 16.2 million colors 1280x800 high resolution touchscreen, NEMA4 rated.
Spec Sheets MCS-MAGNUM-15.4-12 Spec Sheet PDF
MCS-MAGNUM-BACnet-PIC PDF
Wiring Diagrams MCS-MAGNUM-N-12
MCS-MAGNUM-OEM-12 with Expansion Boards
Documents MCS-TOUCH 7 or 15.4 Product ReleasePDF
MCS-TOUCHSCREEN Presentation (PPS)
MCS-TOUCH ManualPDF
MCS-Magnum-Panl-12

MCS-MAGNUM-PANL-12
Part Number MCS-MAGNUM-PANL-12

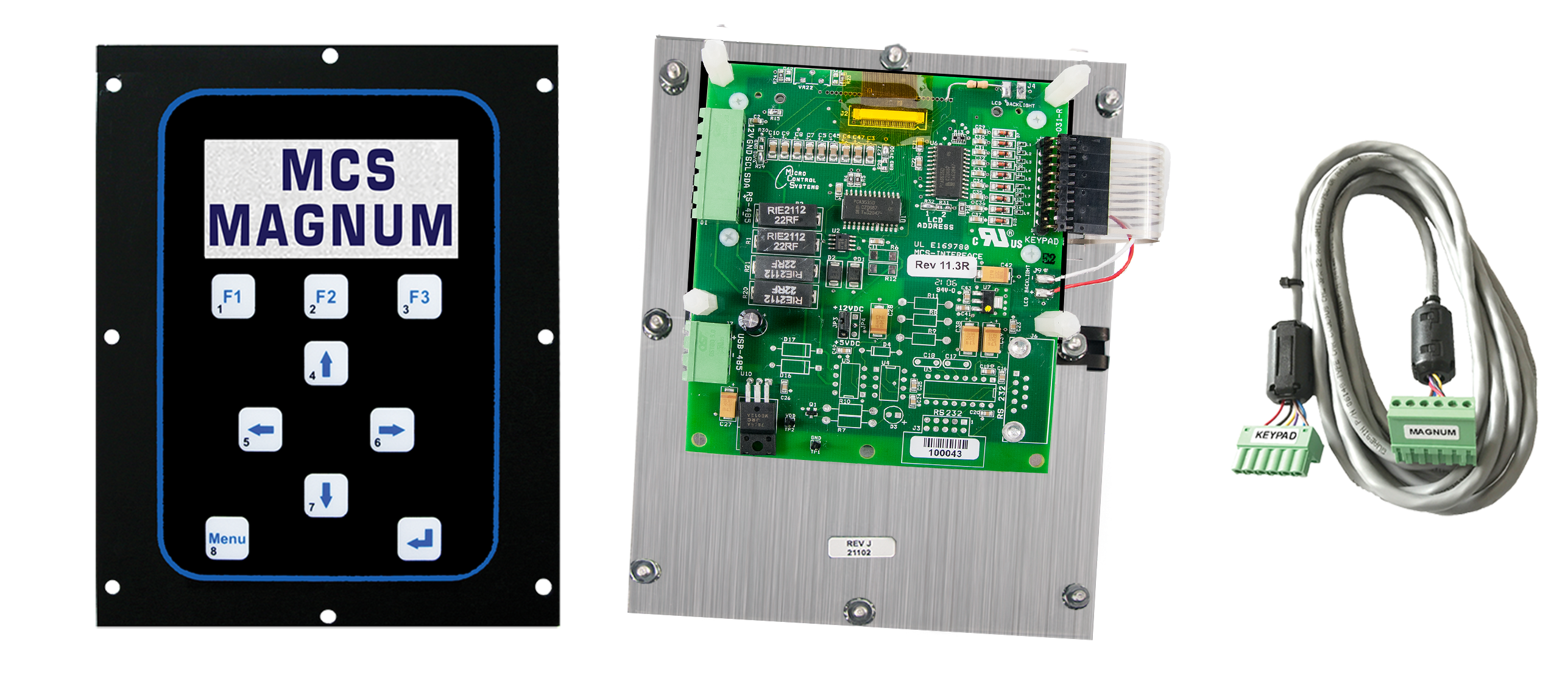

Description Magnum-12 with Panel mounted Keypad / LCD assembly
Spec Sheets MCS-MAGNUM-PANL-12 Spec Sheet PDF
MCS-MAGNUM-BACnet-PIC PDF
MCS-MAG-KEYPAD-OEM-232 Kit Spec SheetPDF
Installation MAG-KEYPAD-OEM, DOOR, PANL Wiring Diagram PDF
Magnum Getting Started ManualPDF
MAG-KEYPAD-OEM-232 Kit Mounting InstructionsPDF
Dimensional Drawings MCS-MAGNUM-PANEL-KEYPAD (DWG)
MCS-MAGNUM-PANEL-KEYPAD PDF
MCS-MAGNUM-N-12 3D (DWG)
MCS-MAGNUM-N-12 3D (STP)
MCS-MAGNUM-KEYPAD-PANL 3D (STP)
Documents Magnum Version 17 ManualPDF
Magnum Keypad Display ManualPDF
Magnum Keypad and Display Presentation (PPS)
RS232 Keypad ReleasePDF
RS485 Keypad ReleasePDF
MCS-Magnum-DOOR-12

MCS-MAGNUM-DOOR-12
Part Number MCS-MAGNUM-DOOR-12
Description Magnum-12 with Door mounted Keypad / LCD assembly
Spec Sheets MCS-MAGNUM-DOOR-12 Spec Sheet PDF
MCS-MAGNUM-BACnet-PIC PDF
MCS-MAG-KEYPAD-OEM-232 Kit Spec SheetPDF
Installation MCS-KEYPAD Door InstallationPDF
MAG-KEYPAD-OEM-232 Kit Mounting InstructionsPDF
MAG-KEYPAD-OEM, DOOR, PANL Wiring Diagram PDF
Magnum Getting Started ManualPDF
Dimensional Drawings MAG DOOR CUTOUT TEMPLATE Model PDF
MCS-MAGNUM-N-12 3D (DWG)
MCS-MAGNUM-N-12 3D (STP)
MCS-MAGNUM-KEYPAD-DOOR 3D (STP)
Documents Magnum Version 17 ManualPDF
Magnum Keypad Display ManualPDF
Magnum Keypad and Display Presentation (PPS)
RS232 Keypad ReleasePDF
RS485 Keypad ReleasePDF
MCS-Magnum-Door-Nema4-12

MCS-MAGNUM-DOOR-NEMA4-12
Part Number MCS-MAGNUM-DOOR-NEMA4-12
Description Magnum-12 with Door mounted waterproof Keypad / LCD assembly.
Spec Sheets MCS-MAGNUM-DOOR-NEMA4-12 Spec SheetPDF
MCS-MAG-KEYPAD-OEM-232 Kit Spec SheetPDF
Installation MCS-KEYPAD Door InstallationPDF
MAG-KEYPAD-DOOR-NEMA4 Cutout Area DimensionPDF
MAG-KEYPAD-OEM-232 Kit Mounting InstructionsPDF
MAG-KEYPAD-OEM, DOOR, PANL Wiring Diagram PDF
Magnum Getting Started ManualPDF
Dimensional Drawings MAG DOOR CUTOUT TEMPLATE Model PDF
MCS-MAGNUM-N-12 3D (DWG)
MCS-MAGNUM-N-12 3D (STP)
MCS-MAGNUM-KEYPAD-DOOR 3D (STP)
Documents Magnum Version 17 ManualPDF
Magnum Keypad Display ManualPDF
Magnum Keypad and Display Presentation (PPS)
RS232 Keypad ReleasePDF
RS485 Keypad ReleasePDF


MCS-MAGNUM-N-12
Part Number MCS-MAGNUM-N-12
Description Magnum-N-12 with OEM mounted Keypad / LCD assembly
Spec Sheets MCS-MAGNUM-N-12 Spec Sheet PDF
Installation Magnum Getting Started ManualPDF
Wiring Diagrams MCS-MAGNUM-N-12
MCS-MAGNUM-OEM-12 with Expansion Boards
Dimensional Drawings MCS-MAGNUM-N-12 3D (DWG)
MCS-MAGNUM-N-12 3D (STP)
Documents Magnum Version 17 ManualPDF
Magnum Keypad Display ManualPDF

Expansion Boards

MCS-IO-BASE/-EXT

MCS-IO-BASE/-EXT

Expansion board for a MCS-MAGNUM-12 is the MCS-IO-BASE with sixteen 0-5vdc sensors inputs, ten 230vac 5amp relays outputs, and four 0-10vdc analog outputs that can be expanded to thirty-two 0-5vdc sensors inputs, twenty 230vac 5amp relays outputs, and eight 0-10vdc analog outputs by pairing with the -EXT Board within the footprint of the -BASE board.

MCS-IO-BASE/-EXT
Part Number MCS-IO-BASE/-EXT
Description MCS-IO-BASE/-EXT(Board only), mounts with six #6 sheet metal screws.
Spec Sheets MCS-IO-BASE Spec SheetPDF
MCS-IO-EXT Spec SheetPDF
Wiring Diagrams MCS-IO-BASE/-EXT
Dimensional Drawings MCS-IO-BASE/-EXT 3D (DWG)
MCS-IO-BASE/-EXT 3D (STP)

MCS-SI-BASE/-EXT

MCS-SI-BASE/-EXT

Expansion board for use with an MCS-MAGNUM-12 is the MCS-SI-BASE with sixteen 0-5vdc sensors inputs, and four 0-10vdc analog outputs that can be expanded to thirty-two 0-5vdc sensors inputs, and eight 0-10vdc analog outputs by pairing with the -EXT Board within the footprint of the -BASE board.

MCS-SI-BASE/-EXT
Part Number MCS-SI-BASE/-EXT
Description MCS-SI-BASE/-EXT (Board only), mounts with four #6 sheet metal screws.
Spec Sheets MCS-SI-BASE Spec SheetPDF
MCS-SI-EXT Spec SheetPDF
Wiring Diagrams MCS-SI-BASE/-EXT
Dimensional Drawings MCS-SI-BASE/-EXT 3D (DWG)
MCS-SI-BASE/-EXT 3D (STP)

MCS-RO-BASE/-EXT

Expansion board for a MCS-MAGNUM-12 is the MCS-RO-BASE with ten 230vac 5amp relays outputs that can be expanded to twenty 230vac 5amp relays outputs by pairing with the -EXT Board within the footprint of the -BASE board.

MCS-RO-BASE/-EXT
Part Number MCS-RO-BASE/-EXT
Description MCS-RO-BASE/-EXT (Board only), mounts with four #6 sheet metal screws and comes with a Lexan cover.
Spec Sheets MCS-RO-BASE Spec SheetPDF
MCS-RO-EXT Spec SheetPDF
Wiring Diagrams MCS-RO-BASE/-EXT
Dimensional Drawings MCS-RO-BASE/-EXT 3D (DWG)
MCS-RO-BASE/-EXT 3D (STP)

MCS-MODBUS-IO-12

MCS-MODBUS-IO-12

MCS-MODBUS-IO-12
Part Number MCS-MODBUS-IO-12
Description MCS-MODBUS-IO-12, mounts with four #6 sheet metal screws through nylon collars at corners of board. The MCS-MODBUS-IO-12 gives the MCS-MAGNUM-12 the ability to act as a Modbus Master using the Modbus RTU Protocol. This allows the MCS-MAGNUM-12 to communicate to Modbus slave devices (such as Variable Frequency Drives, Compressors, etc.) to send and access parameters. The MCS-MODBUS-IO-12 performs like an MCS-RO10 and MCS-SI16-AO4 to the MCS-MAGNUM-12. This allows the MCS-MAGNUM-12 to control 10 relays, 4 analog outputs and read 16 sensors inputs. Multiple MCS-MODBUS-IO-12 boards may be connected to the MCS-MAGNUM-12 following the MCS-I/O standards.
Spec Sheets MCS-MODBUS-I/O-12 Spec Sheet PDF
Firmware MCS-MODBUS-I/O Firmware Version 2.01B(Size: 144 KB)
MCS-MODBUS-I/O Firmware Installation Instructions PDF
Wiring Drawings MCS-MODBUS-IO (DANFOSS CDS303)
MCS-MODBUS-IO (YASKAWA)

Communications

MCS-ETHERNET-SWITCH

MCS-ETHERNET-SWITCH

MCS-ETHERNET-SWITCH
Part Number Enternet Switches
Description A compact, fast industrial Ethernet switch equipped with five 10/100 Base-TX ports and power supply.
Wiring Drawings Enternet Switches

Power Supply

MCS-12V-50W/-75W/-100W

MCS-12V-XXXW

MCS-12V-50W/-75W/-100W
Part Number MCS-12V-50W/-75W/-100W
Description MCS-12V-50W/-75W/-100W is used to power MCS 12V products including the MCS-MAGNUM-N-12, 12V Expansion boards, and the MCS-TOUCHSCREENS.
Wiring Drawings MCS-12V-50W/-75W/-100W Spec SheetPDF
Software Power Supply Calculator
