Peripherals

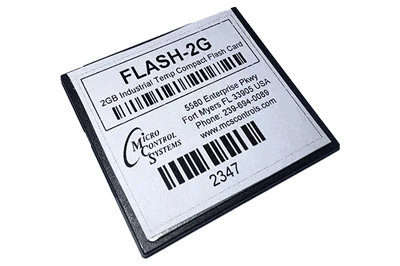

FLASH-2GB
FLASH-2GB
Part Number FLASH-2GB
Description 2GB industrial rated compact flash memory card.

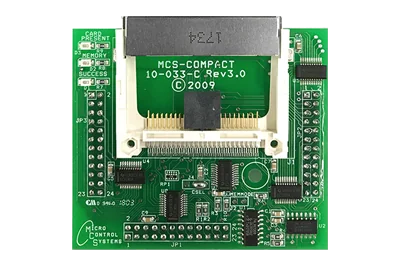

MCS-COMPACT



MCS-COMPACT
Part Number MCS-COMPACT
Description Adapter board for compact flash socket with 2GB compact flash card, compact flash card reader, and USB cable.
Part Number MCS-COMPACT-N
Description Adapter board for compact flash socket with 2GB compact flash card.
Spec Sheets MCS-COMPACT Spec SheetPDF
Installation MCS-COMPACT-Customer Installation SheetPDF
MCS-COMPACT-Customer Installation DiagramPDF
Wiring Diagrams MCS-COMPACT Wiring DiagramPDF

MCS-SI-SELECTOR



MCS-SI-SELECTOR
Part Number MCS-SI-SELECTOR
Description Routes the greater of two sensor input voltages to one output.
Dimensional Drawings MCS-SI-SELECTOR 2DPDF
MCS-SI-SELECTOR 2DDWG
MCS-SI-SELECTOR 3DDWG

MCS-SOLIDSTATE



MCS-SOLIDSTATE
Part Number MCS-SOLIDSTATE
Description Solid state relay board used in conjunction with an MCS-RO8-SSM for high cycle relay operation. Features a single solid state relay with a normally open output that closes with an input of 3-32vdc. It can switch output loads of up to 2A at 280vac.
Spec Sheets MCS-SOLIDSTATE Spec SheetPDF

MCS-THERMOSTAT

MCS-THERMOSTAT

MCS-THERMOSTAT
Part Number MCS-THERMOSTAT
Description The MCS-THERMOSTAT is a temperature and humidity sensing smart device with a backlit LCD display permitting remote adjustments to the MCS controller. This user friendly interface allows the viewing of 17 different parameters and has the ability to change 9 adjustable settings including cooling & heating system setpoints, operational schedules, holiday schedules, calibration and password protection.
Spec Sheets MCS-THERMOSTAT Spec SheetPDF
Wiring Diagrams MCS-THERMOSTAT Wiring DiagramPDF
Manuals MCS-THERMOSTAT Installation & Reference ManualPDF

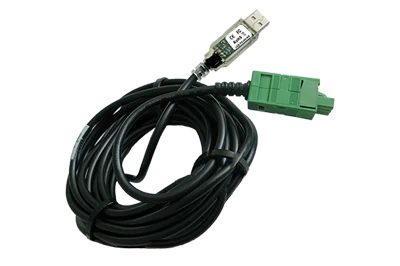

MCS-USB-RS485

MCS USB to 485
MCS-USB-RS485
Part Number MCS-USB-RS485
Description The MCS-USB-RS485 cable is a USB to RS485 that provides a fast, simple way to connect to MCS controllers.
Spec Sheets MCS-USB-RS485 Spec SheetPDF
PC Drivers Click Here to Download and Install the Drivers

Click Here to Visit the OEM Website to Download the Latest Drivers

MCS-AO-RELAY

MCS-AO-RELAY

MCS-AO-RELAY
Part Number MCS-AO-RELAY
Description The MCS-AO-RELAY is a miniature sealed relay used to convert an analog output to a relay output on a DIN rail mounted socket assembly with screw terminals & clamping plates.
Spec Sheets MCS-AO-RELAY Spec SheetPDF
