Power Supplies
| Part Number |

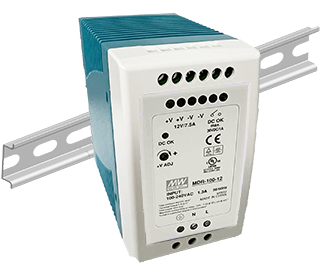

MCS-12V-90W |
|---|---|
| Description |
MCS-12V-90W is used to power MCS 12V products including the MCS-MAGNUM-N-12, 12V
Expansion boards and the MCS-TOUCHSCREENS. |
| Spec Sheets |
MCS-12V-90W Spec Sheet |
| Software |
Power Supply
Calculator |
| Documents | Wiring Change for 12V Power Supply |
| Dimensional Drawings | MCS-12V-90W 3D
|
| Part Number |

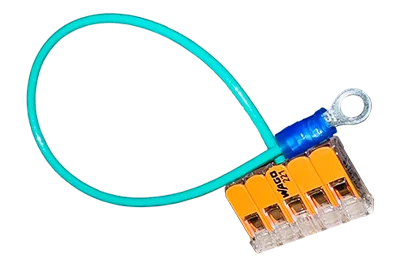

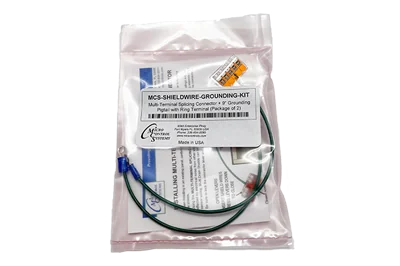

MCS-SHIELDWIRE-GROUNDING-KIT |
|---|---|
| Description |
MCS-SHIELDWIRE-GROUNDING multi-terminal splicing
connector should be used on all 12 volt MAGNUM
or MicroMag installations to safely ground the sensor drain
shield wires to eliminate stray electrical current, thereby helping
to reduce line noise from the sensors to the controller. |
| Spec Sheets |
MCS-SHIELDWIRE-GROUNDING-KIT
Spec Sheet |
