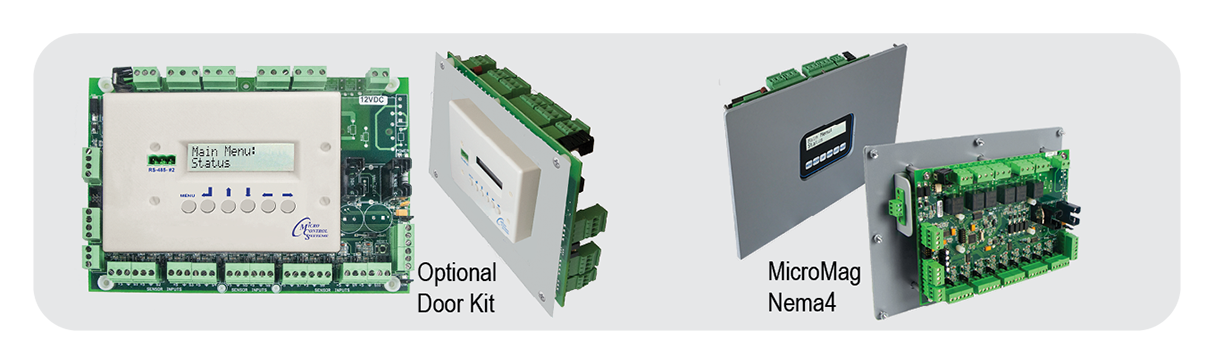

MicroMag Controller

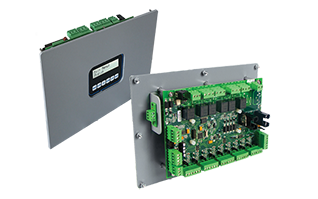

MicroMag

MCS-MICROMAG-24

Micro controller board designed to control up to 6 circuits with 1 compressor each, ten 0-5vdc sensor inputs, six relay outputs fused at 5 amps, four 0-10vdc analog outputs, one TRIAC for digital scroll control, real time clock. MCS-I/O and Two-RS-485 communication ports. Standard with 2 x 16 backlit display and 6 button keypad interface.

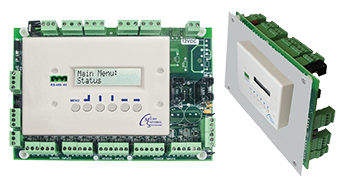

Field Reversible Cover

The Cover/LCD/Keypad can be removed from the MicroMag board and plugged into the backside of the MicroMag board for door mount option. Call MCS-SALES for kit option.

MicroMag
Part Number MicroMag-24
MicroMag-115
MicroMag-230
Description MicroMag with six key Keypad / LCD assembly
Spec Sheets MicroMag-24 Spec Sheet PDF
MicroMag-115 Spec Sheet PDF
MicroMag-230 Spec Sheet PDF
Installation MicroMag Mounting Instructions PDF
MicroMag Electrical Drawing (PDF)PDF
MicroMag Electrical Drawing (DWG)
Documents MCS-MicroMag RTU ManualPDF
MCS-MicroMag Chiller ManualPDF

Expansion Boards

MCS-SI16-AO4

MCS-SI16-AO4

Expansion board for a MCS-MAGNUM or MCS-8 with sixteen 0-5vdc sensor inputs, four 0-10vdc analog outputs, MCS-I/O communication port, no keypad or display. Suitable replacement for MCS-SI16 board. User selectable 115vac or 230vac operation.

MCS-SI16-AO4
Part Number MCS-SI16-AO4
Description MCS-SI16-AO4 (Board only), mounts with four #6 sheet metal screws and comes with a Lexan cover
Spec Sheets MCS-SI16-AO4 Spec Sheet PDF
Wiring Diagrams MCS-SI16-AO4 Electrical Schematic PDF
MCS-SI16-AO4 Electrical Schematic (DWG)
Dimensional Drawings MCS-SI16-AO4 3D DrawingPDF
MCS-SI16-AO4 3D Drawing(DWG)DWG
MCS-SI16-AO4 Mounting Dimensions PDF
MCS-SI16-AO4 Mounting Dimensions (DWG)DWG
MCS-SI16-AO4 3D (STP)
Options available for the MCS-SI16-AO4 expansion board

Add these extensions to the end of the part number for a MCS-SI16-AO4 assembly listed above.

Part Number Extension Description
-24 24vac power input option

MCS-RO10

Expansion board for a MCS-MAGNUM or MCS-8 with ten 230vac 6.3amp relay outputs, MCS-I/O communication port, no keypad or display. Suitable replacement for MCS-RO8 board. User selectable 115vac or 230vac operation.

MCS-RO10
Part Number MCS-RO10
Description MCS-RO10 (Board only), mounts with four #6 sheet metal screws and comes with a Lexan cover
Spec Sheets MCS-RO10 Spec Sheet PDF
Wiring Diagrams MCS-RO10 Electrical Schematic PDF
MCS-RO10 Electrical Schematic (DWG)
Dimensional Drawings MCS-RO Drawings 3D DrawingPDF
MCS-RO Drawings 3D Drawing (DWG)DWG
MCS-RO Mounting Dimensions PDF
MCS-RO Mounting Dimensions (DWG)DWG
MCS-RO10 3D (STP)
Options available for the MCS-RO10 expansion board

Add these extensions to the end of the part number for an MCS-RO10 assembly listed above.

Part Number Extension Description
-24 24vac power input option

MCS-THERMOSTAT



MCS-THERMOSTAT
Part Number MCS-THERMOSTAT
Description The MCS-THERMOSTAT is a temperature and humidity sensing smart device with a backlit LCD display permitting remote adjustments to the MicroMag controller. This user friendly interface allows the viewing of 17 different parameters and has the ability to change 9 adjustable settings including cooling & heating system setpoints, operational schedules, holiday schedules, calibration and password protection.
Spec Sheets MCS-THERMOSTAT Spec SheetPDF
Wiring Diagrams MCS-THERMOSTAT Wiring DiagramPDF
Manuals MCS-THERMOSTAT Installation & Reference ManualPDF

MCS-DS-INTERFACE

MCS-DS-INTERFACE

The MCS-DS-INTERFACE board is a substitute for the Copeland Scroll Digital™ Compressor Controller. The timing specifications are as specified by Copeland. The discharge temperature sensor can be a MCS-T100 temperature sensor or a Copeland discharge temperature sensor (Field selectable).

MCS-DS-INTERFACE
Part Number MCS-DS-INTERFACE
Description MCS-DS-INTERFACE, mounts with four #6 sheet metal screws and comes with a Lexan cover.
Spec Sheets MCS-DS-INTERFACE Spec Sheet PDF
Options available for the MCS-DS-INTERFACE expansion board
Part Number Description
MCS-DS-COMM
MODBUS or MCS-CONNECT communications interface board. Keyed mounting with nylon bolt to MCS-DS-INTERFACE.

MCS-BACNET-ROUTER-2

MCS-BACNET-ROUTER-2
Part Number MCS-BACNET-ROUTER-2
Description Converts MCS-MicroMag BACnet MSTP to IP. Must be factory programmed.
Spec Sheets MCS-BACNET-ROUTER-2 Spec SheetPDF
Installation MCS-BACNET-ROUTER-2 SettingsPDF
Drawings MCS-BACNET-ROUTER-2 DrawingPDF

MCS-BMS-GATEWAY

MCS-BMS-GATEWAY
MCS-BMS-GATEWAY
Part Number MCS-BMS-GATEWAY
Description The MCS-BMS-GATEWAY is a microprocessor based communication device that provides translation from BACnet MSTP to LonTalk on the MCS-MicroMag.
Spec Sheets MCS-BMS-GATEWAY Spec SheetPDF
MCS-BMS-GATEWAY BACnet PICPDF
Electrical Drawings MCS-BMS-GATEWAY Schematic PDF
MCS-BMS-GATEWAY Schematic (DWG)
Documents MCS-BMS-GATEWAY Startup GuidePDF
AppNote How to setup an MCS-BMS-GATEWAYPDF
BMS Requirements ChecklistPDF
Product Update MCS-BMS-GATEWAY Part Change NotificationPDF
Configuration Tools MCS-BMS-GATEWAY Install Tools
