MCS-MAGNUM



Master micro controller board with twelve 0-5vdc sensor inputs, four 5vdc digital inputs, ten 230vac 6.3amp relay outputs, four 0-10vdc analog outputs, keypad, 128 x 64 dot pixel STN monochrome graphics LCD with 2.8" diagonal viewing area, real time clock, MCS-I/O, RS-232, RS-485 and Ethernet communication ports. User selectable 115vac or 230vac operation.

MCS-MAGNUM
Part Number MCS-MAGNUM
Description Magnum with OEM mounted Keypad / LCD assembly
Wiring Diagrams MCS-MAGNUM

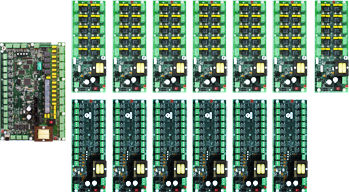

MCS-MAGNUM with Expansion Boards
Part Number MCS-MAGNUM
Description MCS-MAGNUM with Expansion Boards
Wiring Drawings MCS-MAGNUM with Expansion Boards

Expansion Boards

MCS-SI16-AO4

MCS-SI16-AO4

Expansion board for a MCS-MAGNUM or MCS-8 with sixteen 0-5vdc sensor inputs, four 0-10vdc analog outputs, MCS-I/O communication port, no keypad or display. Suitable replacement for MCS-SI16 board. User selectable 115vac or 230vac operation.

MCS-SI16-AO4
Part Number MCS-SI16-AO4
Description MCS-SI16-AO4 (Board only), mounts with four #6 sheet metal screws and comes with a Lexan cover.
Wiring Diagrams MCS-SI16-AO4

MCS-RO10

Expansion board for a MCS-MAGNUM or MCS-8 with ten 230vac 6.3amp relay outputs, MCS-I/O communication port, no keypad or display. Suitable replacement for MCS-RO8 board. User selectable 115vac or 230vac operation.

MCS-RO10
Part Number MCS-RO10
Description MCS-RO10 (Board only), mounts with four #6 sheet metal screws and comes with a Lexan cover
Wiring Diagrams MCS-RO10

MicroMag Controller

MicroMag

MCS-MICROMAG-24

Micro controller board designed to control up to 6 circuits with 1 compressor each, ten 0-5vdc sensor inputs, six relay outputs fused at 5 amps, four 0-10vdc analog outputs, one TRIAC for digital scroll control, real time clock. MCS-I/O and Two-RS-485 communication ports. Standard with 2 x 16 backlit display and 6 button keypad interface.

MCS-MICROMAG
Part Number MicroMag-24
MicroMag-115
MicroMag-230
Description MicroMag with six key Keypad / LCD assembly
Installation MicroMag


MCS-MICRO-MAG with Expansion Boards
Part Number MCS-MICRO-MAG
Description MCS-MICRO-MAG with Expansion Boards
Wiring Drawings MCS-MICRO-MAG with Expansion Boards

Peripherals Wiring Drawings

MCS-485-GATEWAY



MCS-485-GATEWAY
Part Number MCS-485-GATEWAY
Description Communications bridge between the signal levels and protocols of RS-485 and RS-232. Supports baud rate of 19.2Kb/sec as standard.
Part Number MCS-485-GWY9600
Description Communications bridge between the signal levels and protocols of RS-485 and RS-232. Supports baud rate of 9.6Kb/sec as standard.
Wiring Diagram MCS-MAGNUM with MCS-485-GATEWAY
MCS-MAGNUM with MCS-485-GATEWAY with Expansion Boards

MCS-BMS-GATEWAY

MCS-BMS-GATEWAY

The MCS-BMS-GATEWAY is a microprocessor based communication device that provides translation from BACnet MSTP to LonTalk on the MCS-MicroMag.

MCS-BMS-GATEWAY
Part Number MCS-BMS-GATEWAY
Electrical Drawings MCS-MAGNUM with MCS-BMS-GATEWAY
MCS-MAGNUM with MCS-BMS-GATEWAY with Expansion Boards

MCS-EXV-DRIVER



MCS-EXV-DRIVER
Part Number MCS-EXV-DRIVER
Description The MCS-EXV-DRIVER-XX is used for the positioning and control of bipolar expansion valves using an analog input of 0-10 VDC (0 VDC = 0% valve opening, 10 VDC = 100% valve opening).
Wiring Diagrams MCS-EXV-DRIVER (ALCO EX)
MCS-EXV-DRIVER (CAREL)
MCS-EXV-DRIVER (DUAL VALVE(T4))
MCS-EXV-DRIVER (SINGLE VALVE)
MCS-EXV-DRIVER (SPORLAN & DANFOSS)

MCS-MODBUS-IO

MCS-MODBUS-IO

MCS-MODBUS-IO
Part Number MCS-MODBUS-IO
Description MCS-MODBUS-I/O, mounts with four #6 sheet metal screws through nylon collars at corners of board. The MCS-MODBUS-I/O gives the MCS-MAGNUM the ability to act as a Modbus Master using the Modbus RTU Protocol. This allows the MCS-MAGNUM to communicate to Modbus slave devices (such as Variable Frequency Drives, Compressors, etc.) to send and access parameters. The MCS-MODBUS-I/O performs like an MCS-RO10 and MCS-SI16-AO4 to the MCS-MAGNUM. This allows the MCS-MAGNUM to control 10 relays, 4 analog outputs and read 16 sensors inputs. Multiple MCS-MODBUS-I/O boards may be connected to the MCS-MAGNUM following the MCS-I/O standards.
Wiring Drawings MCS-MODBUS-IO (DANFOSS CDS303)
MCS-MODBUS-IO (YASKAWA)

MCS-ETHERNET-SWITCH

MCS-ETHERNET-SWITCH

MCS-ETHERNET-SWITCH
Part Number Enternet Switches
Description A compact, fast industrial Ethernet switch equipped with five 10/100 Base-TX ports and power supply.
Wiring Drawings Enternet Switches
